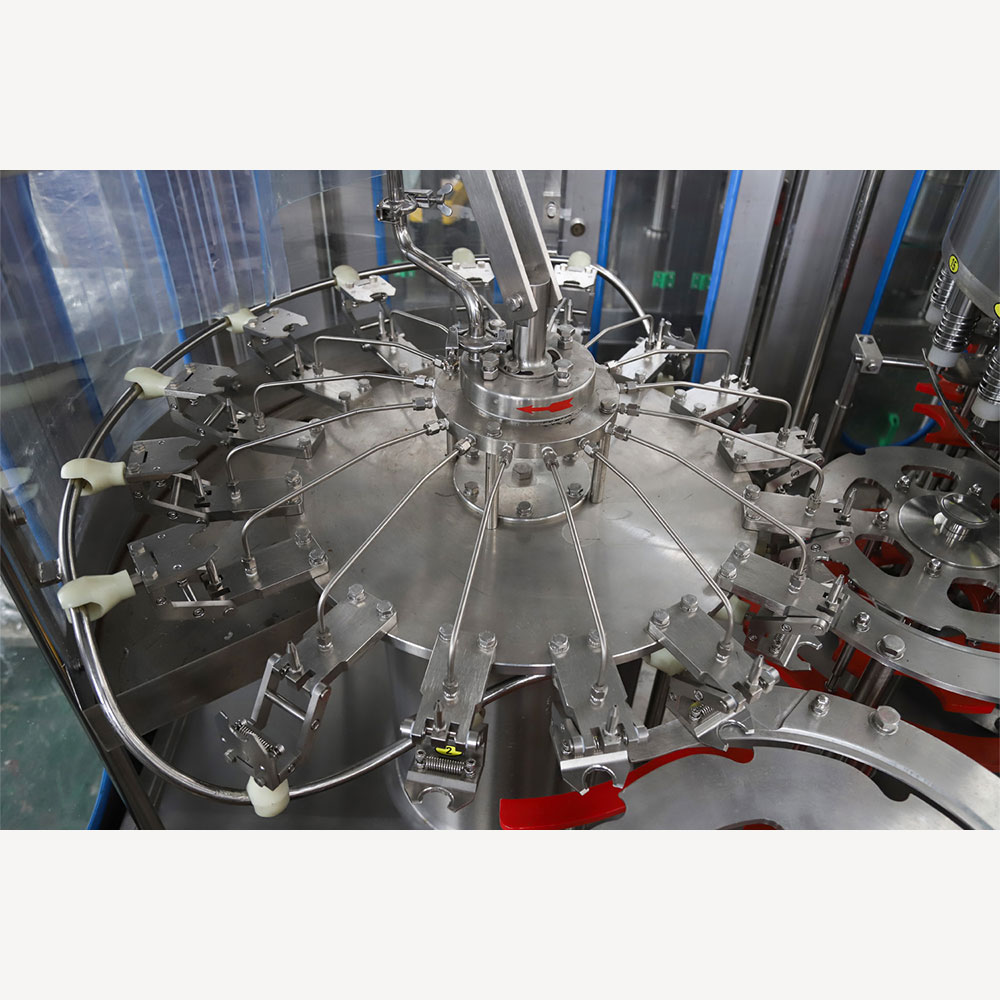

The CGF18-18-6 Small Bottle Water Bottling Machine is designed for manufacturers and suppliers in the bottled water industry. It handles pure water and mineral water production with an output of 6,000-7,000 bottles per hour.
This machine integrates washing, filling, and capping into one automated system. It is suitable for plastic screw caps and bottles with diameters between 50mm and 105mm.
It uses bottleneck clamping & bottle suspending technology, making bottle size adjustments simple. The PLC control system ensures stable operation and easy control.
All water-contacting parts are made of stainless steel, ensuring durability and hygiene. The machine consumes 800Kg/h of water for washing and operates at a gas pressure of 0.4Mpa.
With a compact design, this machine saves space while delivering high production efficiency. It is a cost-effective solution for aftermarket suppliers, water bottling plants, and OEM manufacturers.
Model | CGF18-18-6 |
Production capacity | 6,000-7,000B/H(basis on 500ml bottle) |
Filling precision | ≤±3mm(liquid level) |
Polyester bottle specification | bottle diameter:φ50-φ105mm bottle height: 150-340mm |
Suitable cap type | plastic screw cap |
Water pressure of washing bottle | 0.18Mpa |
Water consumption for washing bottle | 800Kg/h |
Spraying position | 3 |
Dripping bottle position | 2 |
Gas source pressure | 0.4Mpa |
Gas consumption | 0.3m3/min |
Total power | 4.23Kw |
Overall dimension | 1850×1500×2200mm |
Total weight | 1800Kg |
Bottleneck Clamping Technology – No need to adjust machine height when changing bottle sizes, only replace specific parts.
Stainless Steel Bottle Clamps – Durable design prevents secondary contamination.
High-Speed Filling Valve – Ensures fast and precise filling with minimal liquid loss.
Spiral Output System – Allows bottle size changes without adjusting conveyor height.
PLC Automatic Control – Uses branded electrical components for stable operation.
High Efficiency – Produces up to 7,000 bottles per hour.
User-Friendly – PLC and touchscreen control for easy operation.
Cost-Effective – Automation reduces labor and operational costs.
Reliable Performance – Uses branded electrical and pneumatic components.
Compact Design – Saves space and integrates easily into production lines.
Quick Bottle Change – Fast adjustment for different bottle sizes.
Simple Structure – Durable design with easy maintenance.
Bottled Water Industry – Suitable for pure and mineral water production.
Beverage Manufacturers – Ideal for non-carbonated drink bottling.
OEM/ODM Bottling Solutions – Supports customized bottle filling lines.
Food & Beverage Processing Plants – Used for high-volume liquid packaging.
Installation Support – On-site setup and commissioning.
Warranty – Two-year warranty for core components.
Customization – Tailored solutions for specific production needs.
Training – Comprehensive training to ensure efficient machine operation.
Q1: What is the Small Bottle Water Bottling Machine (CGF18-18-6) used for?
A1: It is used for bottling pure water and mineral water, integrating washing, filling, and capping in one unit.
Q2: What is the production capacity of this machine?
A2: It can produce 6,000 to 7,000 bottles per hour, based on 500ml bottles.
Q3: What bottle sizes are compatible with this machine?
A3: It supports polyester bottles with a diameter of φ50-φ105mm and a height of 150-340mm.
Q4: How does the machine ensure filling precision?
A4: It maintains a filling accuracy of ≤±3mm at the liquid level.
Q5: What are the installation requirements?
A5: The machine requires a stable water supply, compressed air, and a 380V/50Hz power connection.
Q6: Can the machine be customized?
A6: Yes, it can be tailored to different production needs, including OEM/ODM requirements.
