BS-1
MARS
842220

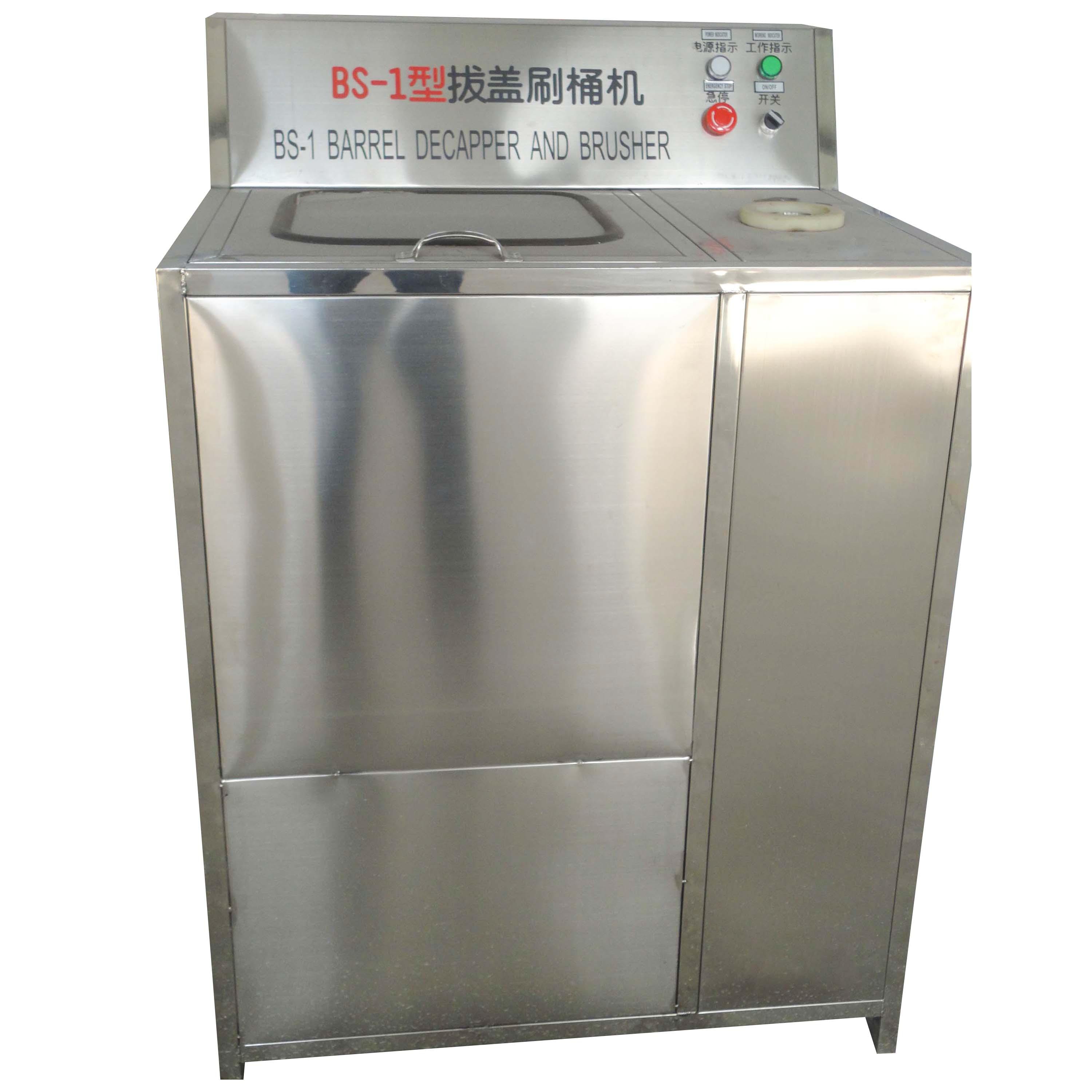

Semi automatic 5 Gallon Barrel Bucket Water Bottle Washing Machine
It is suitable for the pre-washing of 3 gallon, 5 gallon recovery barrels. The machine is made of stainless steel, resistant to corrosion and easy to wash. Besides, its operation is simple and performance is stable.
After the machine connected with power supply. Open the cover of barrel-washing machine, set the barrel which caps are pulled on middle brush of the machine with barrel mouth down and close the cover, then water pump starts working and water enters into the machine, the brush rotates clockwise and the barrel does the same with the driving force of the brush; during the rotation, external brush, bottom brush and side brush scrub the outside of the barrel while internal brush scrubs the inside, in this way, the barrel is completely cleaned and its pre-washing finish.
Technical Parameter:
No. | Item. | Specification |
1 | Production speed | 200-300B/H |
2 | Brush | 8pcs (external and internal, top and bottom) |
3 | Spec. of barrel | 5 gallon (Ø270×490×56) |
4 | Water pump power | 0.37Kw, stainless steel pump |
5 | Rated voltage | 3Phase, 380V, 50HZ or single phase,220V,50HZ |
6 | Brush motor power | 0.75Kw |
7 | Overall dimensions | 800 ×800 ×1200mm |
8 | Weight | 100Kg |
