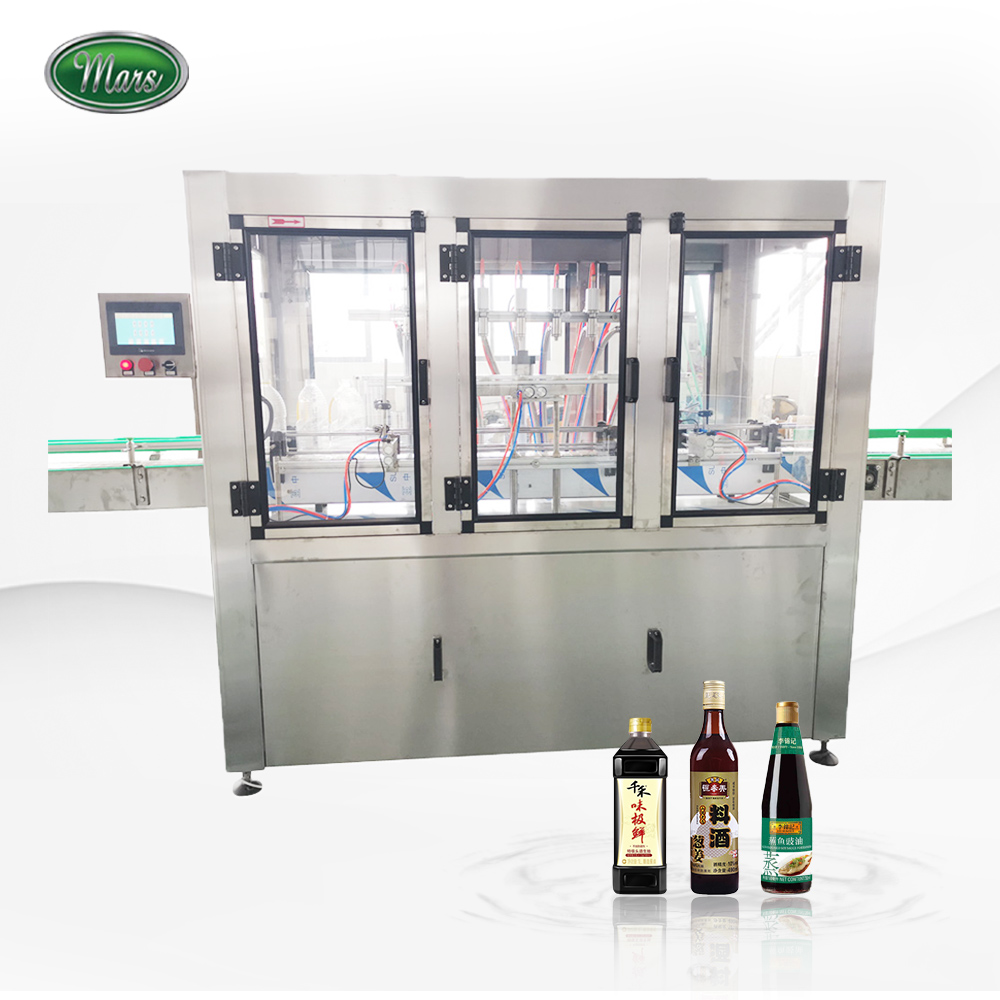

5L 10L Linear Oval Gear Flowmeter Edible Oil Filling Capping Machine:
This liquid filling machine aims at oil realm such as Lubricating oil , edible oil etc. and other realms like agrochemicals.
It isautomatic controlled by computer (PLC ) and touch screen control panels. It has totally closed form.
When filling, it has high accuracy. It is compact and perfect.
Liquid cylinder and conduits can be easily disassemble and clean.
It is also suitable for containers of all figures.
The machine uses high-quality stainless steel frames and international famous brand electrical components.
It applies to GMP standard requirements.
Features:
1.High speed filling valve, guarantees liquid has precise level and no waste is incurred

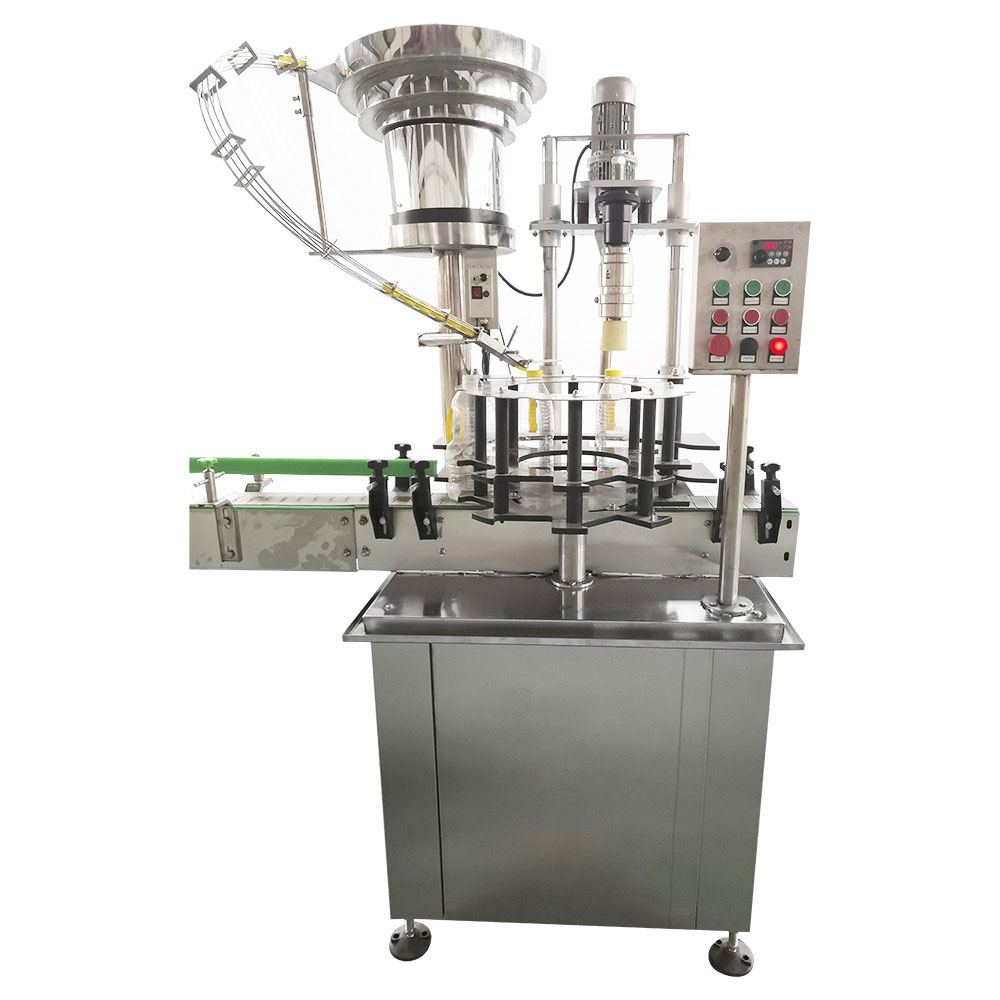

2. The capping heads apply constant magnetic torque device to secure capping quality and prevent damage to the bottle cap.
3. The control system has the function of control producing speed, cap shortage detection, bottle block auto stop and production counting.
Technical Parameter
Production capacity | 200-1000B/Hour(vary for different bottle size ) |
Filling Volume | 100-5000ML |
Filling precision | ±0.5% |
Working pressure | 0.4-1.0MPA |
Power | 3 Phase, 220V/380V, 50HZ/60HZ |
Overall dimension | 1500×870×1900mm |
Weight | 600Kg |
